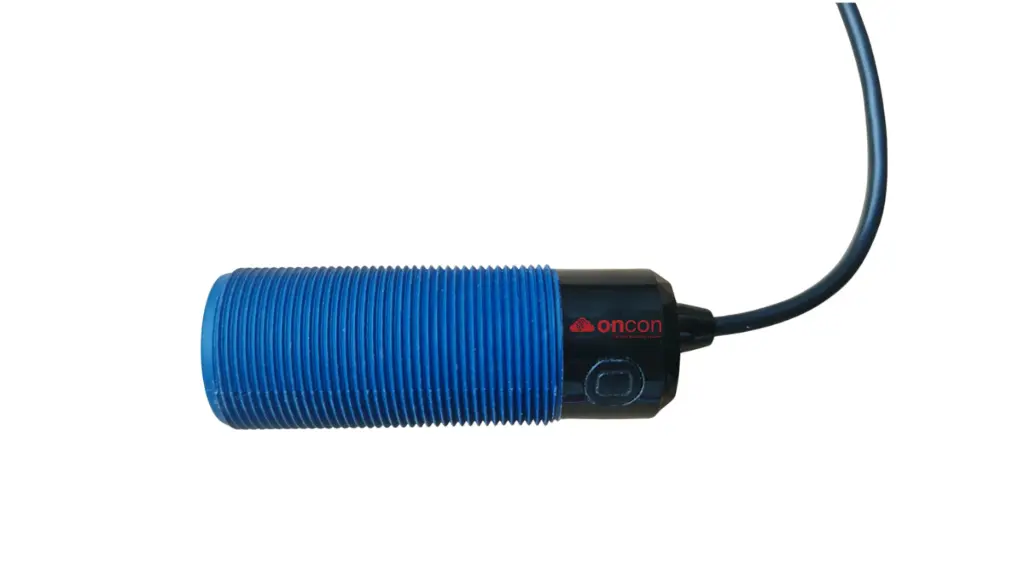

Capacitive sensor 24V
07011319
Capacitive proximity sensor
Model:K15-M30T3L5-XY7
Size:M30*1.5mm
Rated detected distance:15mm
Ajustable detection distance:0-15mm
Output signal:PNP+NO+NC
Mounting method:Non-flush type(Non-shielded)
Supply voltage:DC10-30V
Voltage drop <1.5V
Load current:＜200mA
Consumption current: ＜10mA
Leakage current:＜0.01mA
Insultation voltage:1000V/AC/60S
Switch frequency:5Hz
Short circuit protection/reverse protection:YES/YES
Working temperature: -10°C to + 55°C
Protection grade:Ip67
Housing material:PBT
Connection method:5M PVC cables
